 The ARF prepares the SRB aft & forward skirt, frustum & nose cap for launch |
 I'll take two with extra pepperoni |
 Leave your badge outside to help identify remains |

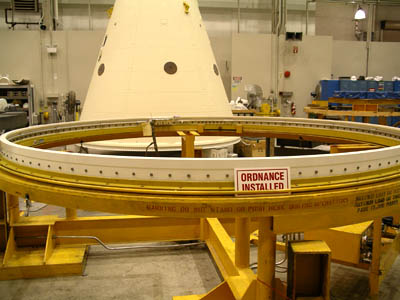

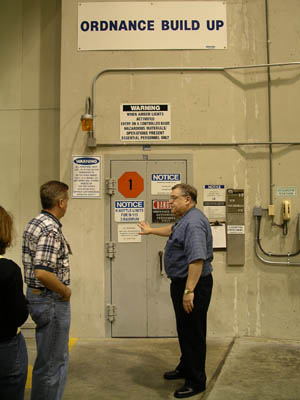

 Inside the blast proof Ordnance Build Up room, the frustum has ordnance on both the top & bottom |

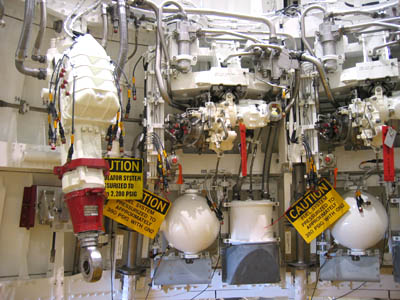

 Aft skirt with booster separation motors removed |

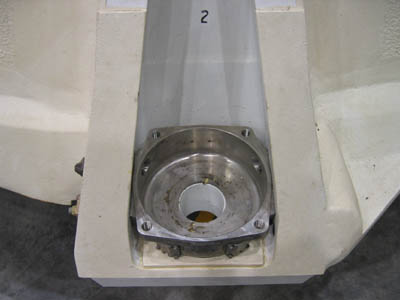

 1 of 4 bolt holes that secure the SRB to the pad |

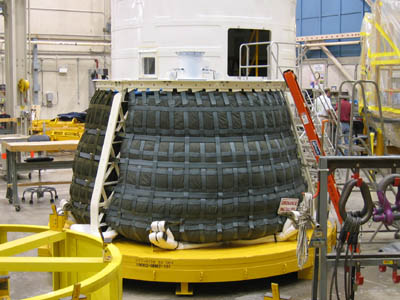

 Aft skirt with booster separation motors before the component is covered with cork |
 Thrust Vector Control System within aft skirt gimbals the nozzle extension to control flight |

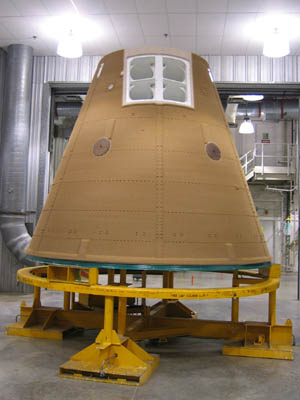

 Separation ring removes Frustum during descent |
 Main Parachute Support Structure contains 3 chutes |

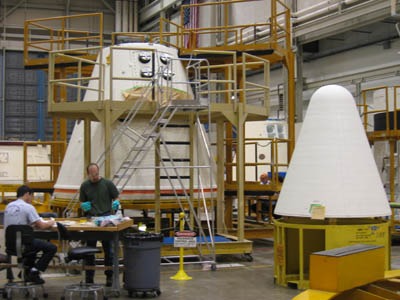

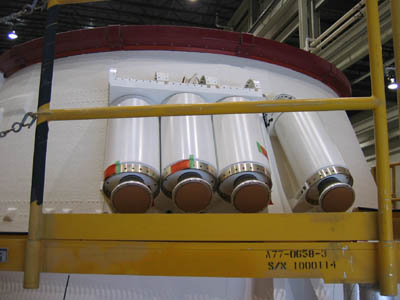

 Forward booster separation motors at the top of the frustum and a nose cap on the right stand |

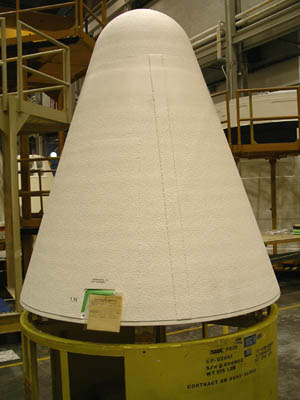

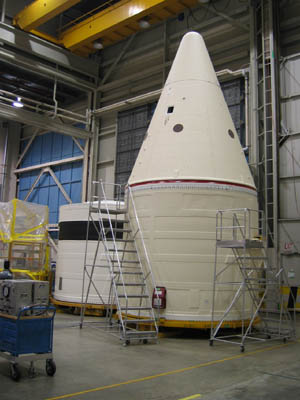

 Forward skirt, frustum, and nose cone stack |
 Nose cap contains the drogue and pilot parachutes |

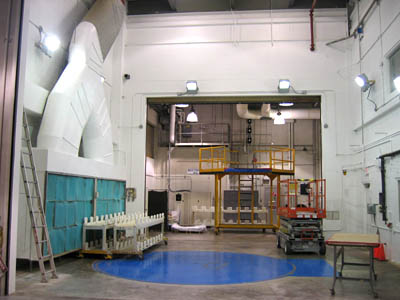

 Forward skirt in a painting chamber |
 The curing room is empty today |

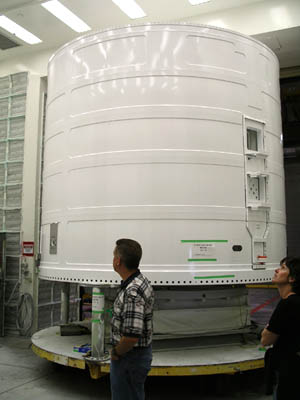

 David admires a painted & cured forward skirt |

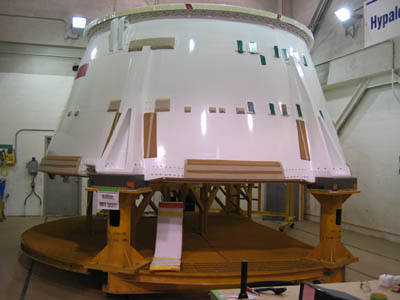

 Extra buildup cork patches applied . . . |
 . . . before the component is sprayed with cork |

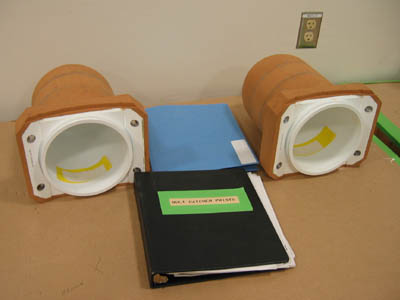

 Corked explosive bolt containment devices |
 Lisa's middle name is Danger |
