 RPSF receives new and reloaded SRB segments shipped by rail from Utah and integrates them with aft skirts received from the Assembly and Refurbishment Facility (ARF) |

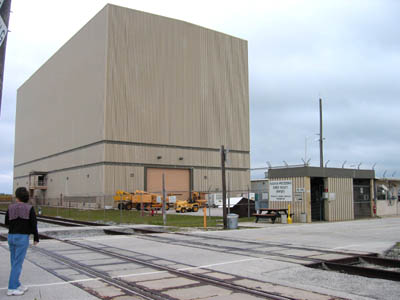

 The main facility is used for solid rocket motor receiving, rotation and inspection |
 Solid Rocket Motor railcar shipping container |
 Solid Rocket Motor exit cone on a rolling platform |

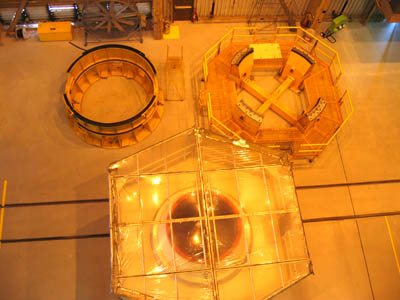

 Aft booster buildup workstand with an SRB |
 Top of a SRB aft segment |
 With the 2 month flight delay of STS-114, these two SRBs may be shipped back to Utah |
 Jon poses with them just in case they are used |
 Closeup of an SRB o-ring which joins the segments |
 Testing the crane today on the large water tank |

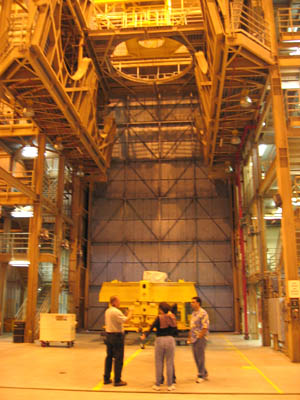

 Components are lifted off railroad cars by the crane |

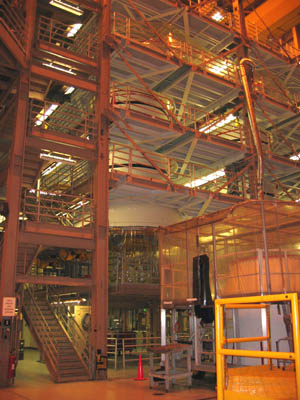

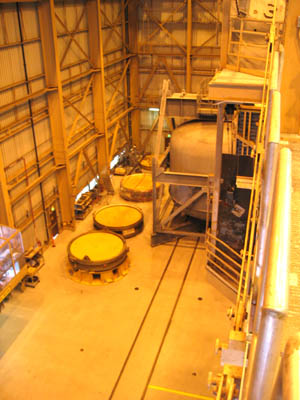

 Down a level where sections are integrated |

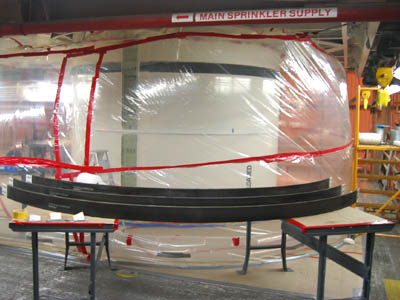

 Stiffners are added to give strength for splashdown |

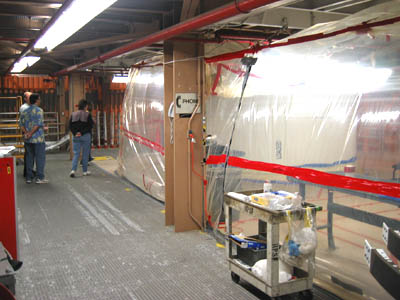

 Segments are kept at Utah humidity levels |

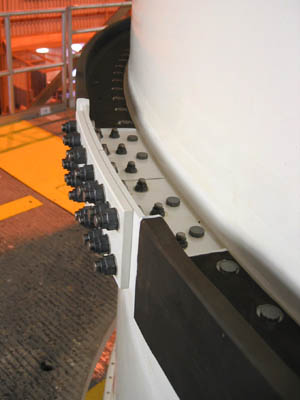

 David is impressed with the amount of bolts |
 The stiffners require a lot of bolts! |
 Thrust Vector Control Hydraulic Servicing Panels |
 Space voyeurs look up the SRBs aft skirt! |
 The business end of a solid rocket motor |

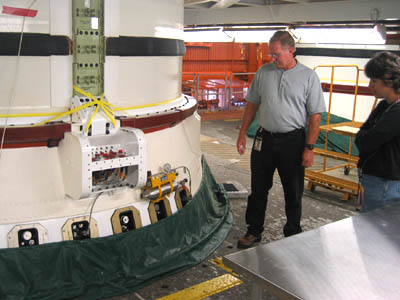

 Thrust vector control system within the aft skirt |
 The Thrust Vector Control System gimbals the Solid Rocket Motor nozzle extension during flight |

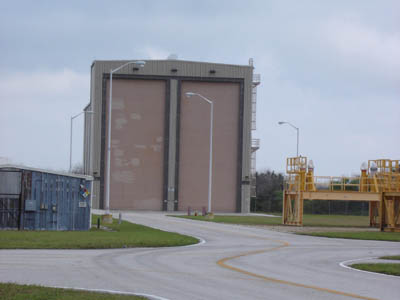

 Nearby Surge Buildings store SRB flight segments until they are moved to the VAB for integration |

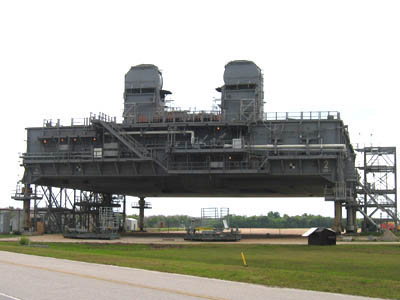

 The third Mobile Launcher Platform sits at the parking location north of the VAB |

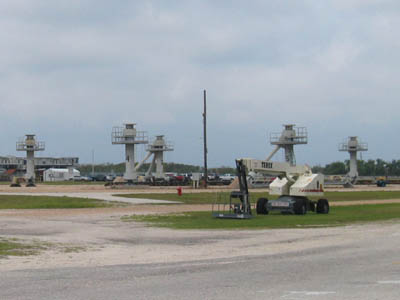

 Nearby empty MLP parking location as the other two MLPs are at the Pad and in the VAB |
